Mining And Chemical Polyester Square Mesh With Custom Aperture White Plain Weave Mesh
Product Introduce
1. Metallurgy, coal, rubber, petroleum, chemical, automobile, ceramics, glass and other industries, used for sieving solid particles or powders.
2. Mainly used in the petroleum industry as a mud net to achieve filtration.
3. The preferred product in the paper industry.
Polyester mesh is one of the world's major drying and filtering materials. Therefore, it is widely used in the field of papermaking. It is an indispensable and consumptive dehydration equipment in the papermaking industry. It is also used in the field of papermaking.
| Material | 100% polyester |
| Length | Customized |
| Width | Max 7.5m |
| Yarn count | Monofilament |
| Mesh Opening | 400um-3000um |
| Seam types | Endless , steel buckle , screw ring , its own ring interface |
Product Features
High dimensional and diagonal stability,good air ventilation.
Seamless - the seam has exactly the same strength of the belt
Smooth,seamless filter or conveying surface.
Durability,Stable property, high strength,good cake release.
Heat-resistance,high temperature resistance(180 degree).
Filled or unfilled to achieved differing filtration characteristics.
Super heat with resin sealed edges for lasting,no marking,economical solution
Can be repaired easily on site
Unique structure help the solid granule get easily off the belt after filtration
Tear-resistance, shrink-resistance and abrasion resistance
Safe for food processing applications
Product Applications
1. polyester square mesh belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
polyester square mesh belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
polyester square mesh belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.

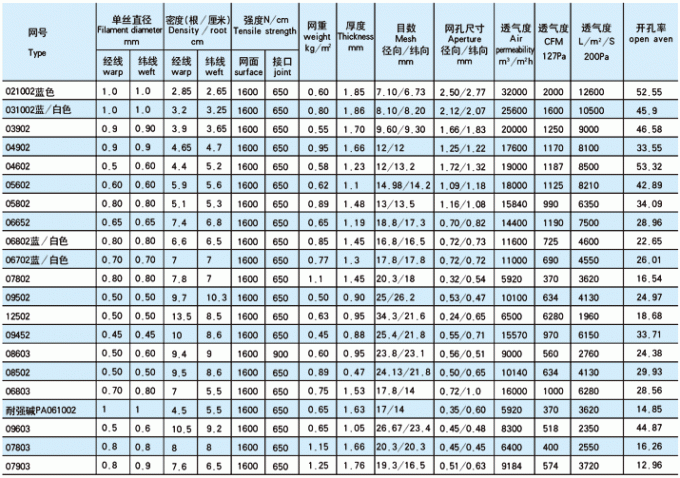

Product Specification
Product Tags:
|
|

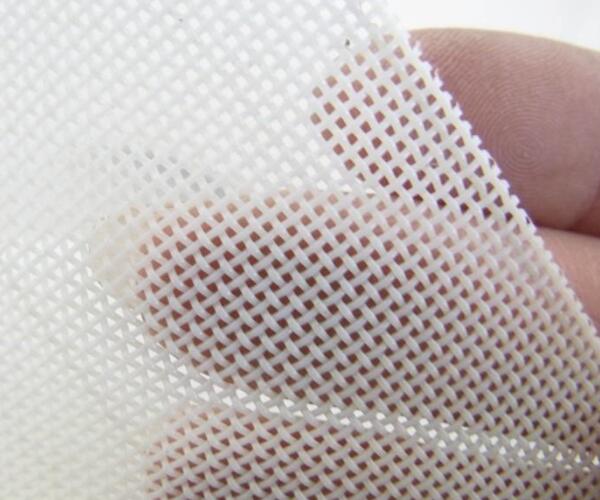

Mining And Chemical Square Polyester Wire Mesh Custom Aperture White Plain Weave Images
|
